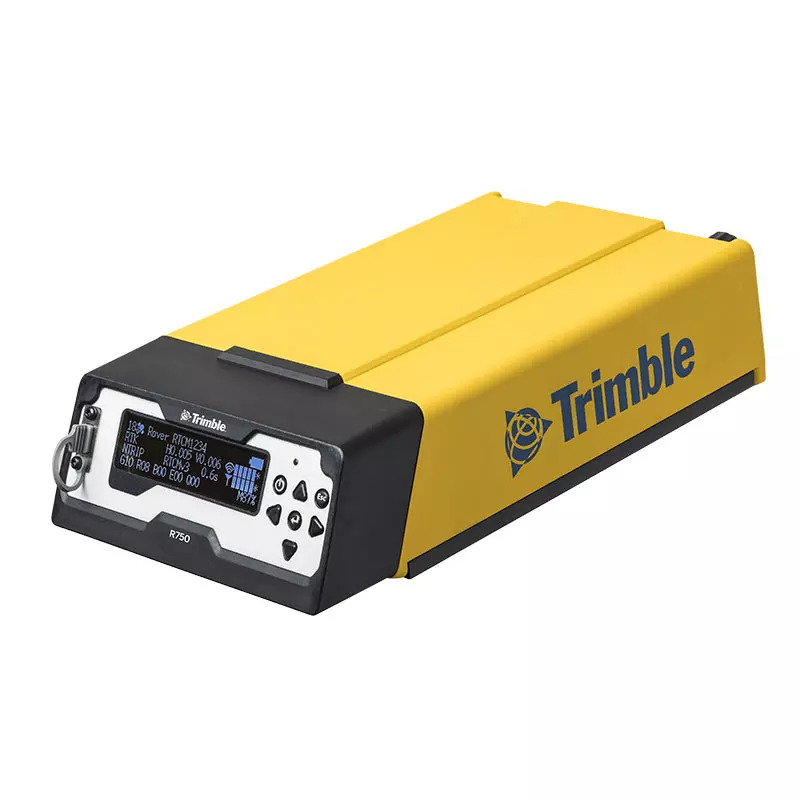

R750 GNSS Modular Receiver

Save time, money and headaches with the Trimble R750 GNSS Modular Receiver, Trimble's reliable, easy-to-use base station solution. With remote monitoring and alerts, an internal radio, LTE modem and rover capability, the R750 is designed to meet all your needs.

Features and Benefits

The R750 incorporates the latest industry-leading positioning technology from Trimble, along with a full suite of modern communications capabilities, in a rugged, modular package that can be deployed anywhere.

Versatile and Modular Design

Use it in a variety of locations—onsite cabins, site trailers, in vehicles or on light machines
Place the receiver where it is protected from theft and weather, then place the external GNSS antenna in a location with clear visibility to the sky
Use it as highly reliable base station or rover
As a vehicle mounted rover it can be used for fast, effective grade checking and surface mapping

Remote Monitoring and Alerts

4G LTE or Wi-Fi gives you access to your base no matter where you are
Receive email alerts, remotely monitor and reconfigure your base stations to eliminate downtime
No need for time-consuming and costly visits to the base station to set up each day or diagnose issues that may arise, particularly for remote or difficult to access locations

Future-Proof

The R750 tracks all currently available satellite signals.
GNSS triple frequency tracking for optimized performance (GPS, GLONASS, QZSS, NavIC, SBAS tracking)
Optional Galileo and BeiDou navigation satellite systems

Powered by the Latest Industry-Leading Trimble GNSS Positioning

Trimble ProPoint technology – constellation-agnostic, robust positioning engine that enables greater reliability and productivity for rover applications, particularly in challenging GNSS environments
Trimble CenterPoint RTX – delivers near RTK level precision anywhere in the world without the use of a local base station or VRS™ network
Trimble Maxwell 7 GNSS ASIC – provides access to al trackable constellations for greater reliability
Trimble xFill technology – seamlessly fills in for gaps in RTK or VRS connection streams—this allows you to continue to use your rover with RTK precisions for up to five minutes if the connection to your primary correction source is lost

Fully Connected and Easy to Use

Connectivity – integrated communications options: 4G LTE modem, UHF, Wi-Fi, and Bluetooth
Trimble Internet Base Station Service (IBSS) – broadcasts Real-Time Kinematic (RTK) data or Differential (DGNSS) corrections from your base station over the internet via Wi-Fi or the internal 4G LTE modem. This makes it easier and more economical to use high precision GNSS for site positioning or machine control on the construction site over ranges which exceed the limitation of the UHF radio link. IBSS can also be used to augment UHF in areas of poor UHF coverage.
Trimble AutoBase technology – rapid daily base station setup with a single button push

Fully Featured

Display – advanced four-line slanted front panel display with Power button, Enter, Escape, and navigation arrow keys for easier navigation, receiver configuration and status monitoring
Durability – IP67 water and dust protection, designed to survive a 1.1 m (3.6 ft) pole drop onto a hard surface
USB-C port – USB data transfer and communications port with support for USB-C PD (Power Delivery) charging in the office, on site, or on the go to extend operating time
QR code – convenient connection to the built-in Wi-Fi access point via your smartphone or tablet

Trimble CenterPoint RTX

Included for the first 12 months, Trimble CenterPoint RTX is a real-time GNSS corrections service available globally via satellite or the internet. It provides RTK-level accuracy at fast convergence times, without the need for a base station or real-time network. Learn more at rtx.trimble.com

Find out more about Trimble GNSS Correction Services here.
