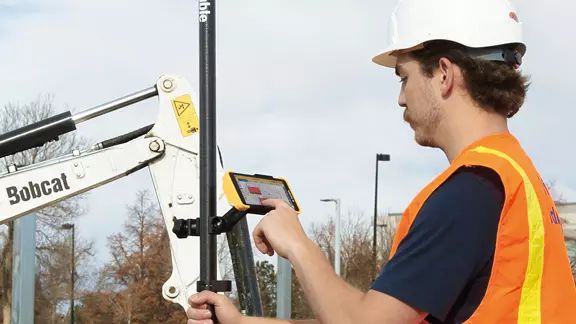

TDC6 Handheld Data Collector
The easy-to-use Trimble TDC6 Handheld Data Collector allows contractors to work with more complex 3D data sets more effectively in the field, connect to the office for on-the-spot approvals and communicate changes to field crews.
Features and Benefits
The TDC6 is a tough, portable and connected field computer for GNSS operations.
One Device, Multiple Applications
- Visualize your site with Trimble SiteVision Software and work seamlessly with Trimble Siteworks Software on the same device
- Use with the Trimble Siteworks Machine Guidance Module as a compact and powerful data collector
High Performance Construction Surveying in Your Hand
- Connect your office to the construction site with this cost-effective solution to enhance field communications
- Lightweight and compact design, that fits easily into a pocket
- Long-life, all-day battery ensures hours of use in the field
Fully-Functional Field Device
- Stay connected and work faster by making design changes in the field, and instantly communicating changes or problems to field crews and the office
- Synchronize data from the site to eliminate delays associated with driving data updates to and from the office and field
- Fast and powerful 2.7 GHz processor with 6GB RAM and 64GB internal storage
- Android™ operating system
Rugged and Reliable
- Built to stand up to any construction site, in any weather
- Read text, graphics and complex maps under any field conditions, even bright sunlight
- Work longer with the large capacity, field replaceable all‑day battery
TDC6 Handheld Data Collector Downloads
Downloads and Documentation
Firmware Versions
Current Software and Firmware Versions
Documentation
Documents and User Guides
Applications
Use the TDC6 with Trimble Siteworks Software and a Trimble GNSS Receiver for:
-
- Measuring and verifying original ground levels and site features
- Monitoring real-time cut/fill information
- Checking finished grade and laid material thickness against design elevations and tolerances
- Computing progress and material stockpile volumes
- Monitoring, and conducting quality control for earthworks and paving operations
- Assessing as-built measurements and generating high quality reports for record keeping, approvals and payments
- Synchronizing design and field data via the internet
Use the same TDC6 with other applications
-
- Visualize your site and easily check progress with Trimble SiteVision Software,
an augmented reality solution - With the Trimble Siteworks Machine Guidance Module the TDC6 becomes a display for machine guidance
